On Chip Clock Controller란? OCC란?

On Chip Clock Controller는 디지털 회로 설계에서 Design For Testability에서 사용됩니다.

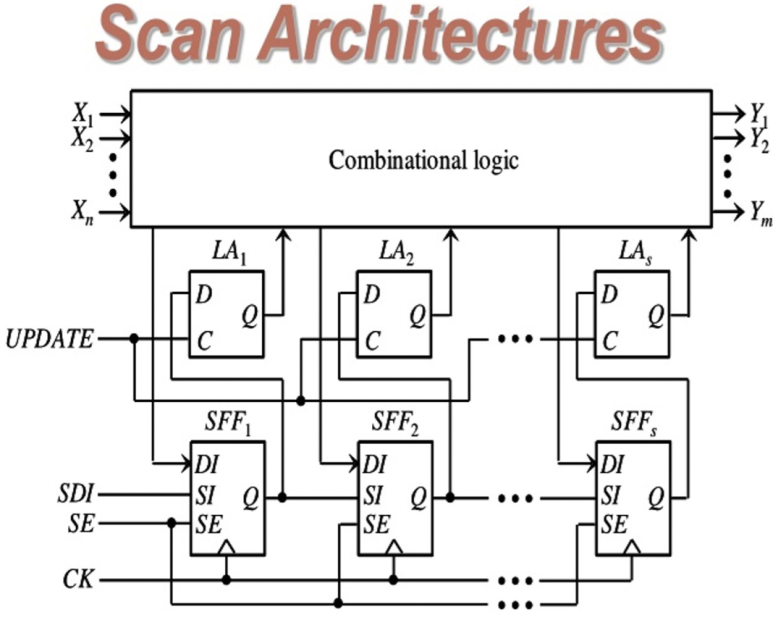

SCAN 구조는 간단히 아래처럼 설계를 하잖아요?

0

그런데 그림을 보면 CK Port가 각 CK Pin에 입력됩니다.

이 CK에 Clock은 ATE Clock과 Mission Clock을 Muxing해서 넣게 되죠.

SCAN에서 그냥 기본적인 Stuck-At Fault Test의 경우, ATE Clock으로 Slow clock만 인가하지만,

Transition Delay fault Test의 경우, On Chip Clock의 실제 Clock Frequency로 Chip Test를 해야합니다.

Physical 문제로, PAD에 대한 스펙 한계로, Test coverage로

Foundry에서는 ?Hz 이상 Clock인 경우, Transition Delay Fault Test 검증을 위해선 OCC를 삽입할 것을 권장합니다.

OCCC란?

On-Chip Clock Controller (OCCC)는 현대 DFT에서 클록 관리를 위한 핵심 컴포넌트로, IC 내부에서 클록 신호를 생성, 제어, 분배하는 역할을 담당합니다.

1

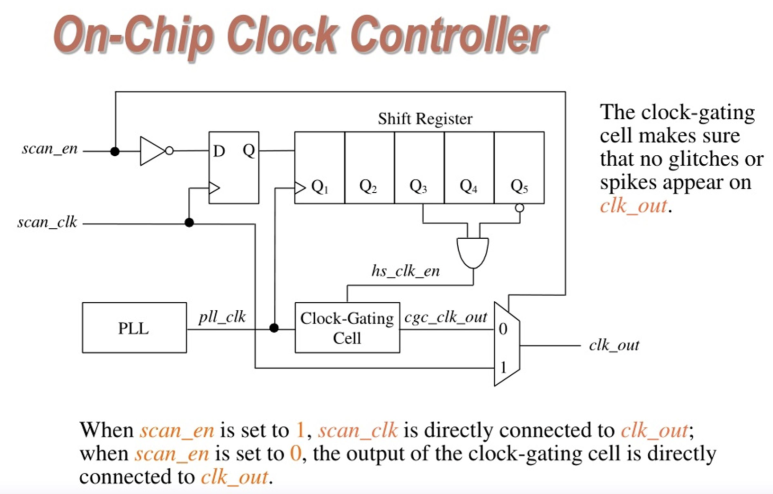

위 그림에서 보이는 것처럼, Muxing 뿐만 아니라 Synchronizer와 Clock Gating Cell이 추가됩니다.

  • Synchronizer

  • Clock Gating

  • Clock Muxing

위 세 개가 가장 기본적인 OCC 구조라고 보시면 됩니다.

SDC로 위 OCC 관계를 정해놓고, STA의 Mode를 잡고 STA해야합니다. 안 그러면 안 봐도 될 타이밍들이 보이니까요

아래 논문 보면 OCC 개념에 대해 좀 더 자세히 볼 수 있습니다.

https://www.scientific.net/AMM.347-350.724

[An On-Chip Clock Controller for Testing Fault in System on Chip Scientific.Net](https://www.scientific.net/AMM.347-350.724) : Registration Log In Distribution & Access For Publication Downloads News About Us Contact Us Search Paper Titles The Characteristic Parameter Estimation of Low Temperature Target Weak Signal Based on VanderPol-Duffing System p.706 The Design of an Miniature Underwater Robot for Hazardous Environment…

근데 실제로 대부분의 회사들이 OCC는 IP 형태로 instance화하여 사용할텐데, 실제 산업에서 쓰이는 OCC는 이것보다는 좀 더 복잡합니다.

아래 특허 참고:

https://patents.google.com/patent/KR20140076074A/en

KR20140076074A - On-Chip Clock Controller circuits in SoC(system on chip) - Google Patents : Other languages Korean ( ko ) Other versions KR101992205B1 ( en Inventor 김대웅 Original Assignee 삼성전자주식회사 Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.) 2012-…
