Foundry가 Fabless에게 제공 하는 파일 중 하나인 Library. 제일 중요한 파일입니다.
이 라이브러리라는 파일을 생성하는 것을을 라이브러리 캐릭이라고 합니다.
Library Cell Characterization이란?
우리는 주로 이것을 캐릭, Char 등으로 부릅니다. Library Cell characterization에는 다양한 조건에서 셀의 동작을 정확하게 나타내는 라이브러리 내 표준 셀의 세부 모델을 생성하는 작업이 포함됩니다.
이러한 모델에는 Timing, Power, Area, Noise 등의 주요 특성이 포함됩니다.
Foundry에서는 TCAD, SPICE, Library char까지 주요 임무를 맡게 됩니다.
SPICE Tool은 매우 정확하게 Cell 특성을 모델링 할 수 있는데, 계산 과정에 엄청난 컴퓨팅을 사용하게 됩니다.
이 Cell을 갖고 Chip을 디자인하려면, 그때 그때 이런 계산을 해둔 것보다는, 이미 계산을 해놓은 데이터셋을 하나 만들어놓고, 필요 할 때마다 계산된 값을 가져오는게 좋죠.

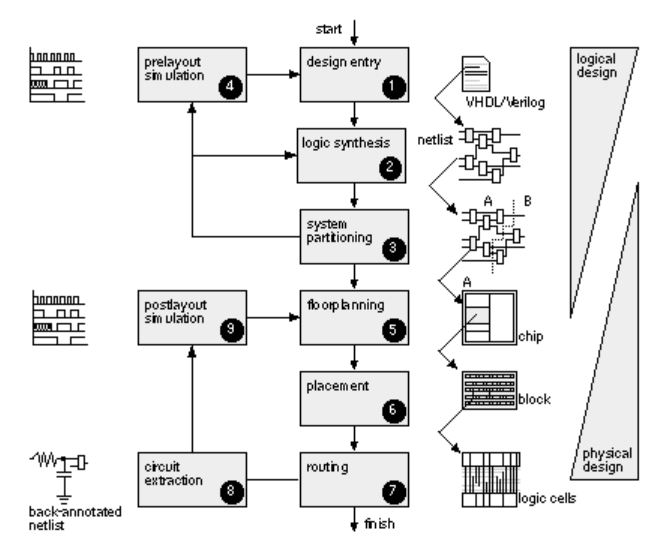

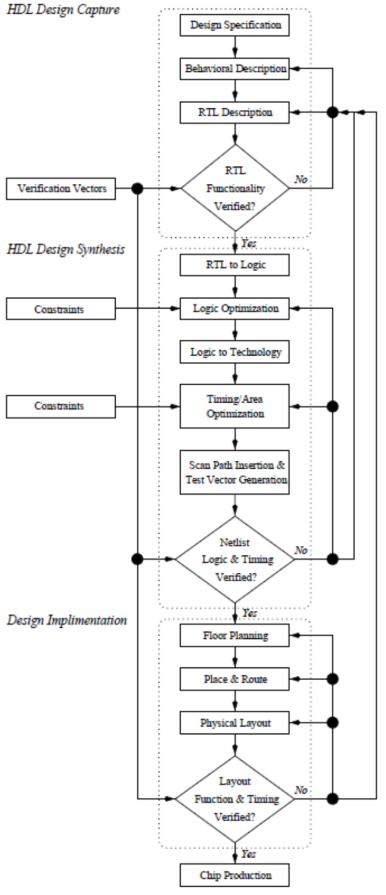

ASIC 칩 설계의 큰 흐름이 아래처럼 진행되는데, 아래 flow 대부분이 Library를 사용합니다.
Data Self-healing Technique using ASIC Level Security Mechanisms, Kuldeep Chouhan
Data Self-healing Technique using ASIC Level Security Mechanisms, Kuldeep Chouhan
Library characterization의 주요 목표는,
(1) IC 설계 프로세스 전반에 걸쳐 디지털 설계 툴에서 활용할 수 있고,
(2) SPICE와 Library 간의 격차가 거의 없는 고품질 데이터 + 저용량으로 생성하는 것입니다.
-> 이게 매우 까다롭습니다. EDA Tool이 빠르게 돌려면 파일이 가벼워야하고, 가벼우면 데이터 양이 줄어드니 내삽/외삽을 해야하는 범위가 넓어집니다. 근데 실제 특성은 linear하지 않아서, SPICE와 Library 간 차이값이 발생합니다.
어떻게 하냐? 간단히 설명하면,
(1) input 파일으로 Transistor/Technology model, SPICE Circuit 받고
(2) SPICE Simulation이랑 라이브러리 캐릭 진행해서
(3) 모델링 된 라이브러리 출력한다.
아래 같은 흐름이에요. 정확히 아래처럼 쓰는건 아니긴한데.
set CORNER TT
set VOLTAGE 1.2
set TEMPERATURE 25
set cell AND2_Chase
set_operating_condition -voltage $VOLTAGE -temp $TEMPERATURE
## Load template information for each cell ##
source technology_config.tcl
source spice_config.tcl
read_spice SUBCKT.sp
source user_config.tcl
char_library -cells ${cells}
write_library ${cell}.lib
write_verilog ${cell}.v
그러고 나면, 아래 같은 포맷으로 파일이 출력됩니다.
물론 library에는 다양한 버전이 있습니다. NLDM, CCST, CCSN 등..
그리고, 하나의 셀을 “Worst Process Corner, Worst Voltage Corner, Worst Temperature corner” 등 여러가지 코너로 뽑습니다.
Library의 대명사처럼 쓰이는 것이 .lib이고, .lib은 liberty file format입니다.
모든 회사의 EDA Tool이 인식 할 수 있도록, 오픈소스로 공개되어있는 Cell 모델링 규칙입니다.
사람이 읽을 수 있는 ASCII 포맷입니다.
/* General Syntax of a Technology Library */
library (nameoflibrary) {
... /* Library level simple and complex attributes */
... /* Library level group statements */
... /* Default attributes */
... /* Scaling Factors for delay calculation */
/* Cell definitions */
cell (cell_name) {
... /* cell level simple attributes */
/* pin groups within the cell */
pin(pin_name) {
... /* pin level simple attributes */
/* timing group within the pin level */
timing(){
... /* timing level simple attributes */
} /* end of timing */
... /* additional timing groups */
} /* end of pin */
... /* more pin descriptions */
} /* end of cell */
... /* more cells */
} /* end of library */
그런데! ASCII 포맷은 사실 용량 최적화 측면에서 매우 비효율적입니다. 그래서 compress 시킨 후, .db 형태로 저장합니다.
Synopsys EDA Tool은 대부분 liberty도 호환은 하지만, 너무 무겁기에 매우 느립니다. .db를 사용합니다.
주로 많이 쓰이는 Tool은
Synopsys사의 PrimeLib, Cadence사의 Liberate가 많이 쓰입니다. 이 외에도 많은 툴이 있긴한데, 어쨌든 다른 EDA와의 호환을 고려해야하니, 두 회사 제품이 가장 많이 쓰입니다. Synopsys 같은 경우엔, 가장 많이 쓰이는 “.lib”이라는 liberty 포맷을 개발한 회사이기도 하구요.
좀 더 자세한 내용을 보시려면, 아래 링크를 확인하세요.
https://www.synopsys.com/glossary/what-is-library-characterization.html
[What is Library Characterization? – How it Works & Techniques | Synopsys](https://www.synopsys.com/glossary/what-is-library-characterization.html) : Cell library characterization is a process of analyzing a circuit using static and dynamic methods to generate models suitable for chip implementation flows. |
(1) Library characterization 할 때에는 SPICE가 Golden data입니다.
(2) STA, Power analysis, EDA Tool을 이용한 대부분의 것들은 Library가 Golden data이구요.
(3) 결국, Library <-> SPICE Simulation의 차이값이 거의 없어야합니다.
그런데 Library는 사실 계산을 만들지 않고, SPICE Simulation에서 계산된 몇가지 주요 값들을 가져오는 것이다보니, 이 주요값을 그대로 갖고와서 쓰는게 아니라면, 오차가 발생하게 됩니다. 아래 글을 참조해주세요.
https://blog.naver.com/gc_na/223466110373
Library: Interpolation이란? Extrapolation이란? : 통계학적 연구를 할 때 많이 쓰는 개념이 Interpolation과 Extrapolation입니다. 개념은 간단한데, 잘 설…
아~ 나는 라이브러리 캐릭은 잘 모르겠고, 라이브러리 써보고싶어서 이 글 들어왔다?
오픈소스로 유명한, skywater PDK 사용하면 됩니다.
https://github.com/google/skywater-pdk
GitHub - google/skywater-pdk: Open source process design kit for usage with SkyWater Technology Foundry’s 130nm node. : Open source process design kit for usage with SkyWater Technology Foundry’s 130nm node. - google/skywater-pdk

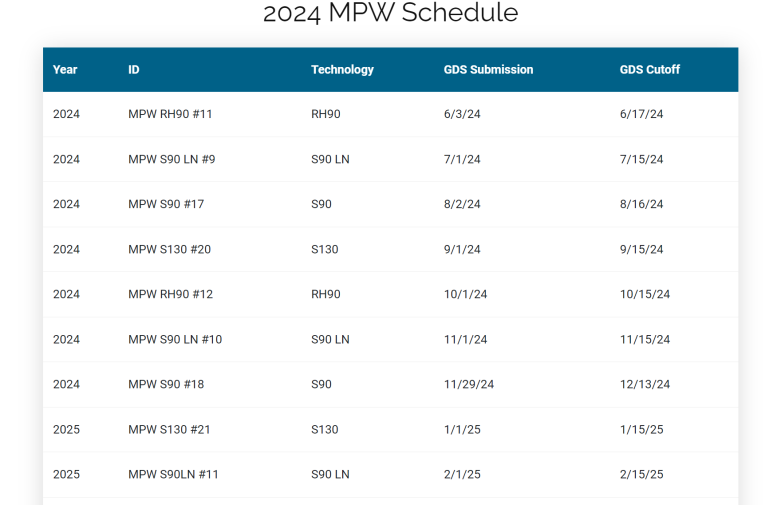

skywater에서 오픈소스 PDK를 공개했고, 이거로 MPW도 가능합니다. 여기 아래 일정에 맞춰서 GDS out 하면 됩니다.
나는 다른 회사꺼로도 칩을 만들어보고싶다?
Europractice도 있습니다. 유럽권 학교 다니면 할인도 받을 수 있는 것 같습니다.
https://europractice-ic.com/schedules-prices-2024/
CMC Microsystems는 캐나다 연구자들을 위한 것들인데, 캐나다 학교 다니시면 무료로 제조까지 할 수 있는 것 같습니다.
https://www.cmc.ca/technologies/
FAB Technologies – CMC Microsystems : Click for Subscriber Pricing Process Name Features Design Kits and Libraries List Price (USD)* $917/mm 2 (Minimum charge is for a 24 mm 2 design) Molecular Beam Epitaxy (MBE) Gas-Source MBE Metal-Organic Chemical Vapor Deposition (MOCVD) See the Opto Epitaxy Form . Contact fab@cmc.ca . Photonics Co…
