How much does doubling liquid-cooling flow reduce chip temperature?

The coolant returning from a server is cooler, yet the chip remains hot. Before blaming an undersized pump, separate two processes: water carrying heat away and heat crossing from silicon into water. They create different temperature rises.

In an AI infrastructure article published on 2026-09-30, SK hynix described power and cooling as constraints on system design. A server engineer needs a more specific answer: To meet the chip-temperature limit, should we increase flow, improve the contact interface, or lower the inlet-water temperature? Recent context

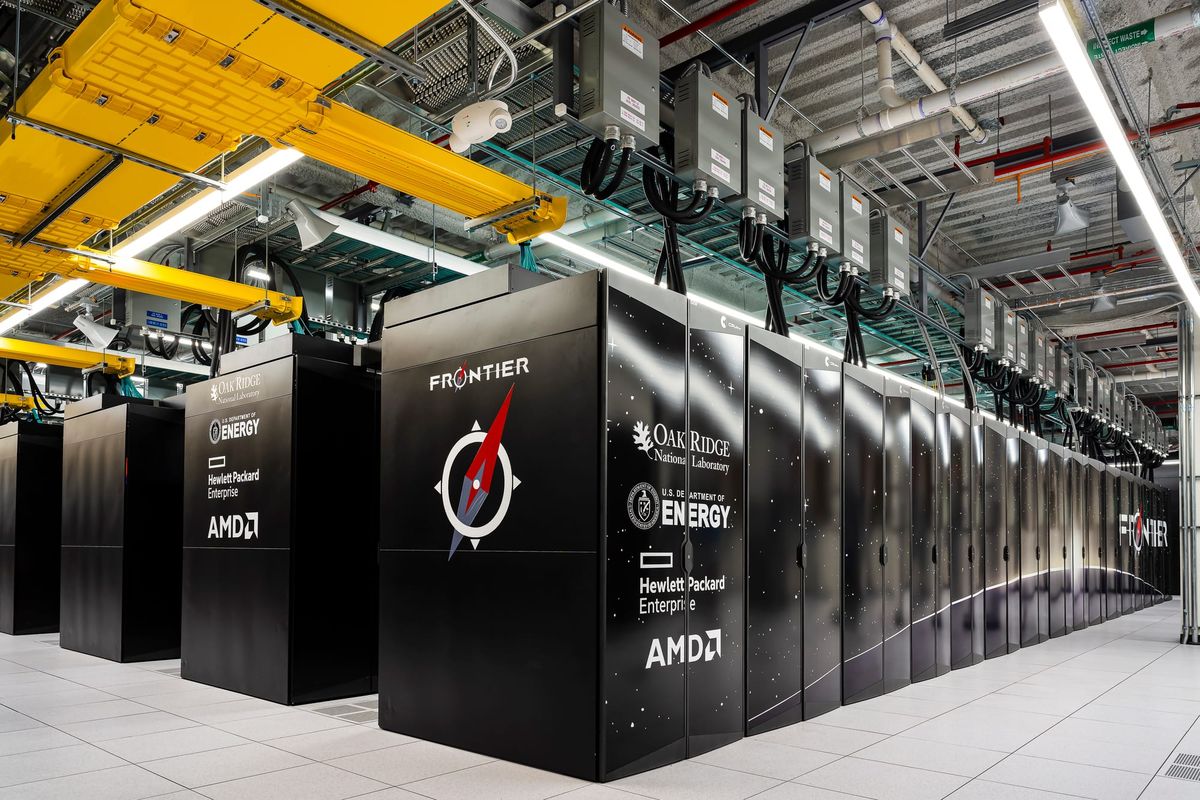

The cover photograph shows Frontier at Oak Ridge National Laboratory. Researchers studying this system describe cooling-tower, facility and computer-side circuits connected by heat exchangers. Heat collected from chips crosses several boundaries before reaching the outdoors. The calculations below are a separate design example for understanding those boundaries, not a performance estimate for Frontier. Frontier cooling study

What the water-temperature difference tells us

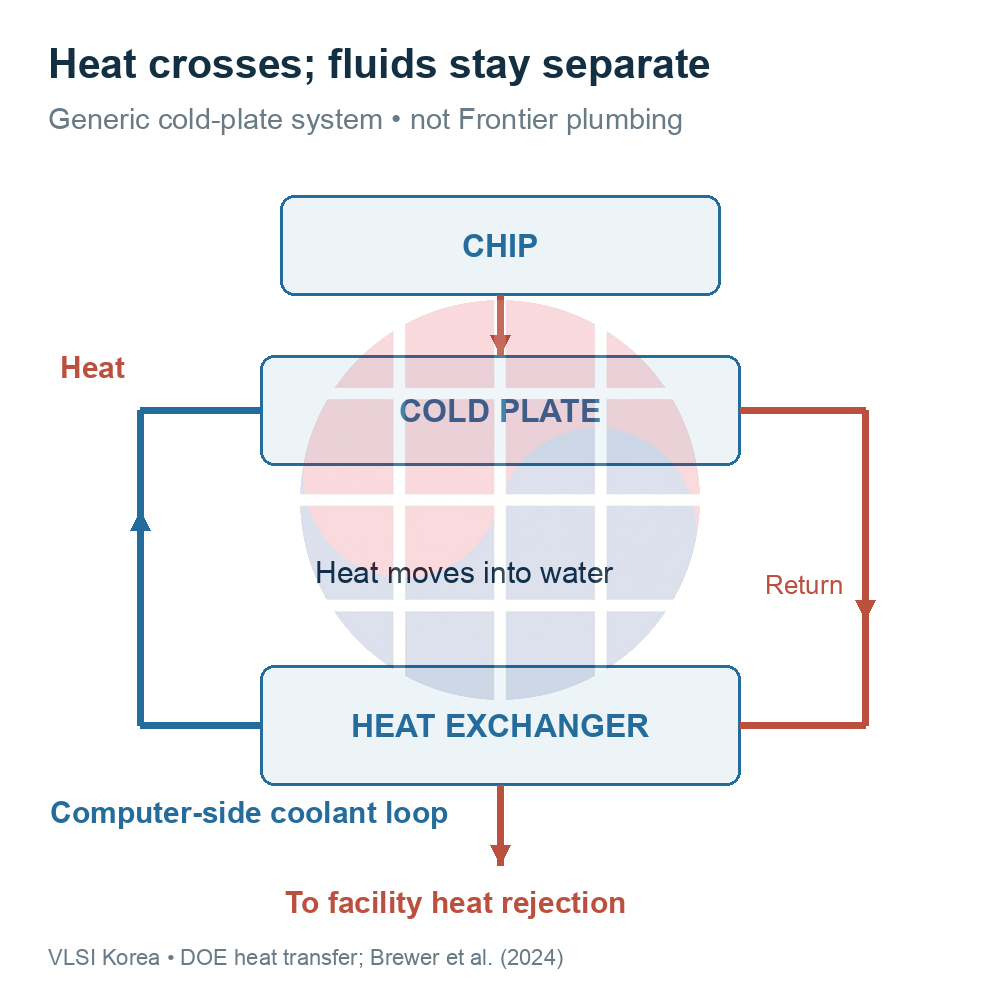

A cold plate is a metal cooling structure mounted against the heat source, with internal passages for coolant. Heat conducts through solid material and transfers from the channel wall into the fluid. Heated water returns to a heat exchanger, releases heat and circulates again. Increasing flow sends more mass past the heat source per unit time to share that heat load. Cold-plate construction

At steady state, neglecting heat escaping elsewhere, the heat absorbed by the coolant equals mass flow times specific heat times the outlet-to-inlet temperature difference. Specific heat is the energy needed to increase temperature per unit mass. With heat rate P, mass flow ṁ and specific heat cₚ, P = ṁ × cₚ × (T_out − T_in). DOE thermodynamics handbook

Fix the example conditions. A hypothetical heat source transfers 1,000 W to coolant supplied at 35°C. Assume constant water density of 1,000 kg/m³ and specific heat of 4,180 J/(kg·K). This is single-phase cooling without boiling. Pump heating, heat escaping to the surroundings and transient heat storage are excluded from this heat-source calculation.

1 L/min corresponds to 0.0167 kg/s. The water-temperature rise is therefore 1,000 ÷ (0.0167 × 4,180), or about 14.4°C when calculated using the unrounded mass flow. Raising flow to 2 L/min reduces this rise to about 7.2°C. The water's outlet-to-inlet temperature difference has halved. Neither chip temperature nor the chip-to-water temperature difference has necessarily halved.

This distinction also matters when taking measurements. A smaller water-temperature rise at the same heat load may indicate more flow. But reduced workload can also reduce heat generation, so flow readings must be considered alongside power records. A lower return-water temperature alone does not establish that the cold plate performs better.

The chip needs a temperature difference to move heat

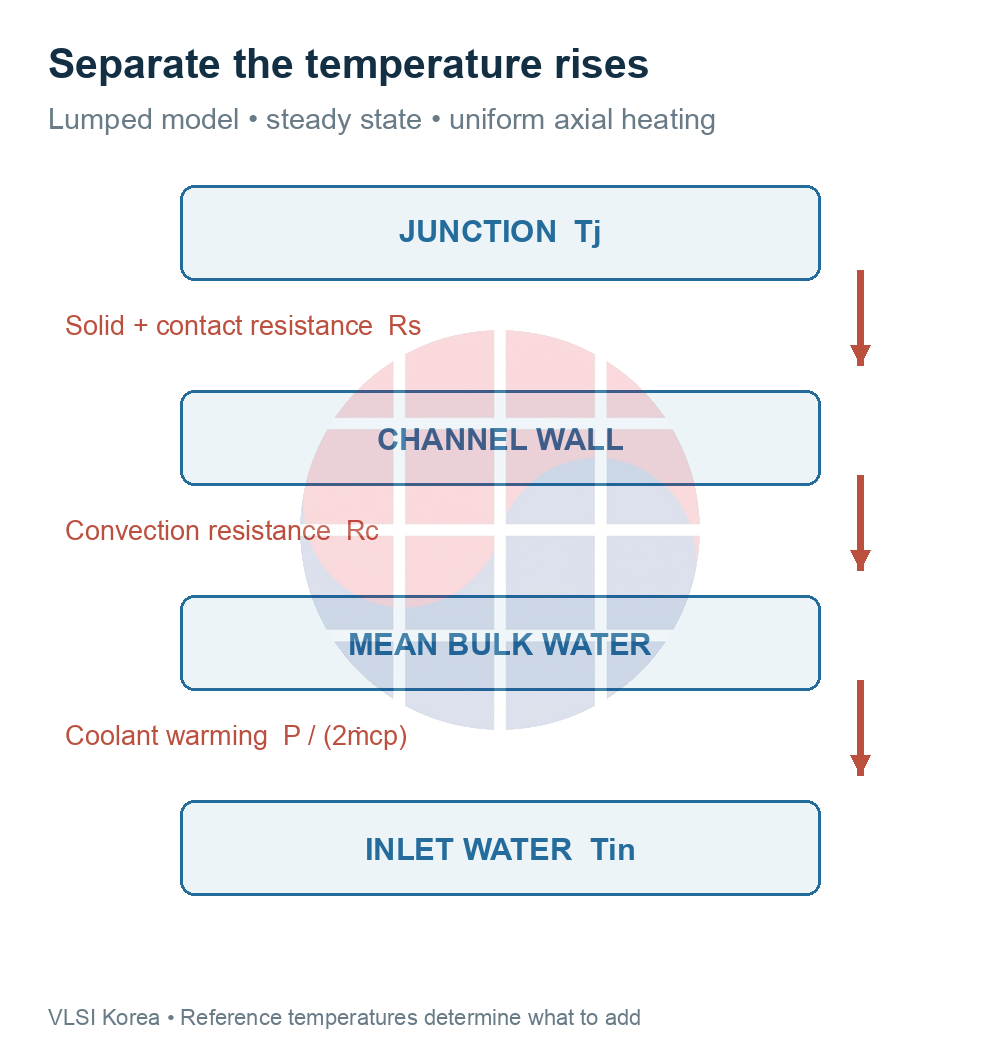

The temperature at the heat-generating region inside the chip is called junction temperature, T_j. For heat to flow, the source must be hotter than the receiving region. Material thickness, thermal conductivity, heat-spreading area and contact conditions influence the required temperature difference.

Thermal resistance is the temperature difference divided by the heat rate through a specified path. K/W expresses the temperature difference needed for 1 W to flow through that path. Thermal interface material, or TIM, fills small gaps and forms part of the path. Adding thermal resistances in series resembles an electrical-resistance calculation, but real chips also spread heat in multiple directions and contain local hot spots. DOE conduction and convection handbook

For this example, assign 0.035 K/W to the solid/contact resistance R_s from the chip to the channel wall. Assume the convection resistance R_c from the wall to the mean water temperature is 0.020 K/W at 1 L/min. Neither value is a manufacturer's specification or a Frontier measurement.

Water warms as it passes through the plate. Approximating heat input as uniform along the flow path makes the mean water temperature the midpoint between inlet and outlet. The model becomes T_j ≈ T_in + P/(2ṁcₚ) + P × R_s + P × R_c. Different heat distributions and channel layouts require revisiting this mean-temperature approximation.

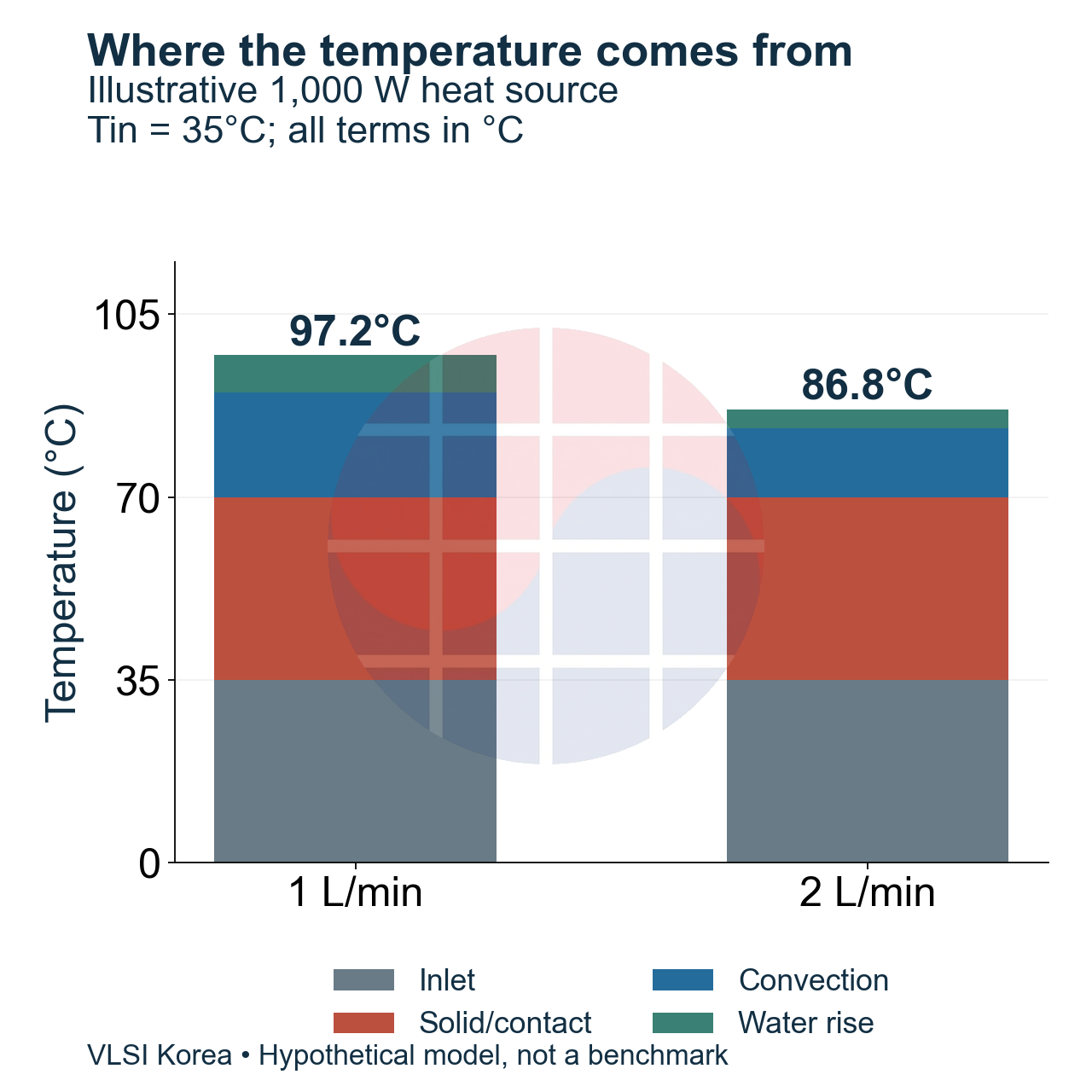

At 1 L/min, add a 7.2°C mean coolant rise, a 35°C solid/contact rise and a 20°C convection rise to the 35°C inlet temperature. The calculated chip temperature is 97.2°C. These separate contributions explain why the chip is hotter than even the outlet water.

Before using a component datasheet, match the reference temperatures. If the supplier already specifies resistance from the chip or mounting surface to inlet coolant, adding mean coolant warming again would double-count it. A surface-to-fluid resistance also cannot be treated as junction-to-fluid resistance without including the intervening package path.

More flow cannot erase a solid-path bottleneck

Flow velocity can also change wall-to-water heat transfer. To include that effect, set the example convection resistance to R_c = 0.020 × (flow / 1 L/min)^−0.6 K/W. The exponent 0.6 is an illustrative assumption, not a correlation valid for every cold plate or flow regime. An actual design needs the component's measured resistance-versus-flow curve in its place.

At 2 L/min, convection resistance becomes about 0.0132 K/W. Mean water warming falls to 3.6°C while the solid/contact term stays unchanged. Chip temperature is now 35 + 3.6 + 35 + 13.2 = 86.8°C. The water-temperature rise has halved, but the chip has cooled by about 10.4°C.

Suppose the designer chooses a hypothetical junction-temperature limit of 85°C. This change alone misses the target. If solid/contact resistance could instead be reduced by 0.010 K/W at 2 L/min, chip temperature would fall by another 10°C to about 76.8°C. Whether that reduction is achievable depends on the package and assembly, but the calculation identifies a path to examine before buying more pumping capacity.

Options on the solid side include shortening the conduction path to the channels, spreading heat over a larger area, and reducing gaps or interface-material thickness. Thinner structures and higher clamping forces also face manufacturing tolerances, stiffness requirements and contact-uniformity constraints. Improving conduction is a design objective; simply pressing harder is not a universal prescription.

VLSI Korea view: After increasing flow, separate the remaining temperature-rise contributions. If the path a pump cannot change dominates, the next investment belongs at the cold-plate and package interface.

Further cooling can demand rapidly increasing pump power

Flow is not free. A pressure difference is needed to push water through narrow passages and bends. For pressure loss Δp and volumetric flow V̇, hydraulic pump power is Δp × V̇. Electrical input is that value divided by combined pump and motor efficiency. DOE fluid-flow handbook

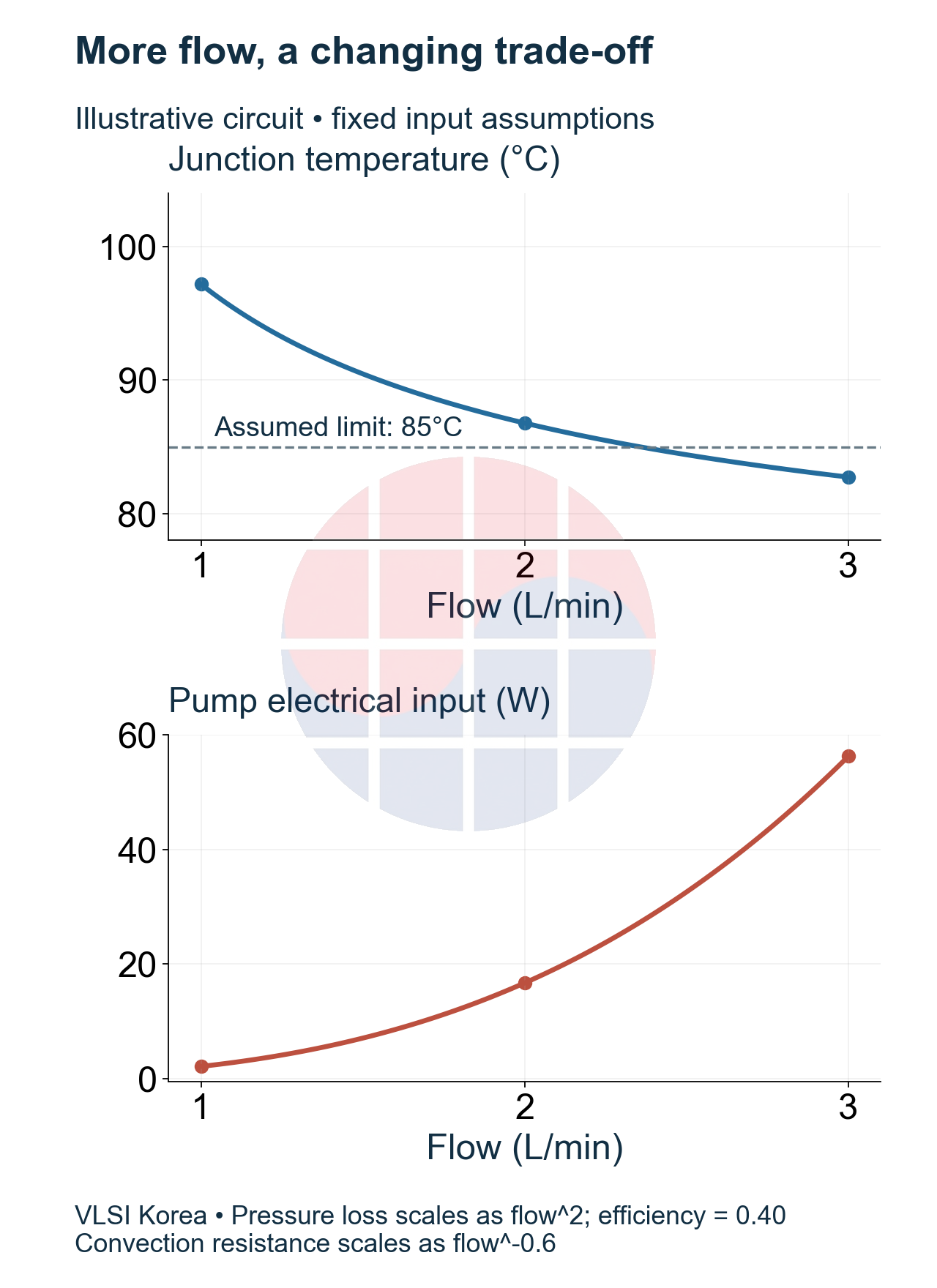

Assume a separate hypothetical hydraulic circuit has 50 kPa pressure loss at 1 L/min, with pressure loss proportional to flow squared over the range considered. Hold combined efficiency at 0.40. Electrical input is then about 2.1 W at 1 L/min and 16.7 W at 2 L/min. Pressure loss rises 4-fold and flow rises 2-fold, giving an 8-fold power increase.

At 3 L/min, calculated chip temperature falls further to 82.7°C, while pump electrical input under the same hydraulic assumptions reaches 56.3 W. That last flow increase buys about 4.0°C of additional cooling for approximately 39.6 W of additional pump input. These values describe only the assumed circuit, not whole-facility cooling power or an actual CDU specification.

Pressure and heat-transfer curves depend on geometry and whether flow is laminar or turbulent. Real pump efficiency is not constant either. Do not memorize an unconditional rule that doubling flow requires 8-fold power. Compare the supplier's thermal and hydraulic curves on the same flow axis. Coolant mixture and temperature also change viscosity and specific heat, shifting the operating point.

Sometimes more flow is the right answer

There is a counterexample. Consider another hypothetical structure with only 0.005 K/W solid/contact resistance but 0.060 K/W baseline convection resistance. Keeping the other conditions and exponent unchanged gives 107.2°C at 1 L/min and 83.2°C at 2 L/min. The temperature reduction grows to about 24.0°C.

Here, wall-to-water heat transfer is the controlling bottleneck. Increasing flow can be effective if pressure limits and pump capacity allow it. Conversely, a blocked passage starving a particular chip may be hard to diagnose from total rack flow. Branch-level flow and differences among chip temperatures matter.

VLSI Korea view: “Thermal resistance matters more than flow” is also too broad. The useful distinction is between resistance that more flow can reduce and resistance that it barely changes.

Plumbing changes the answer even with the same pump

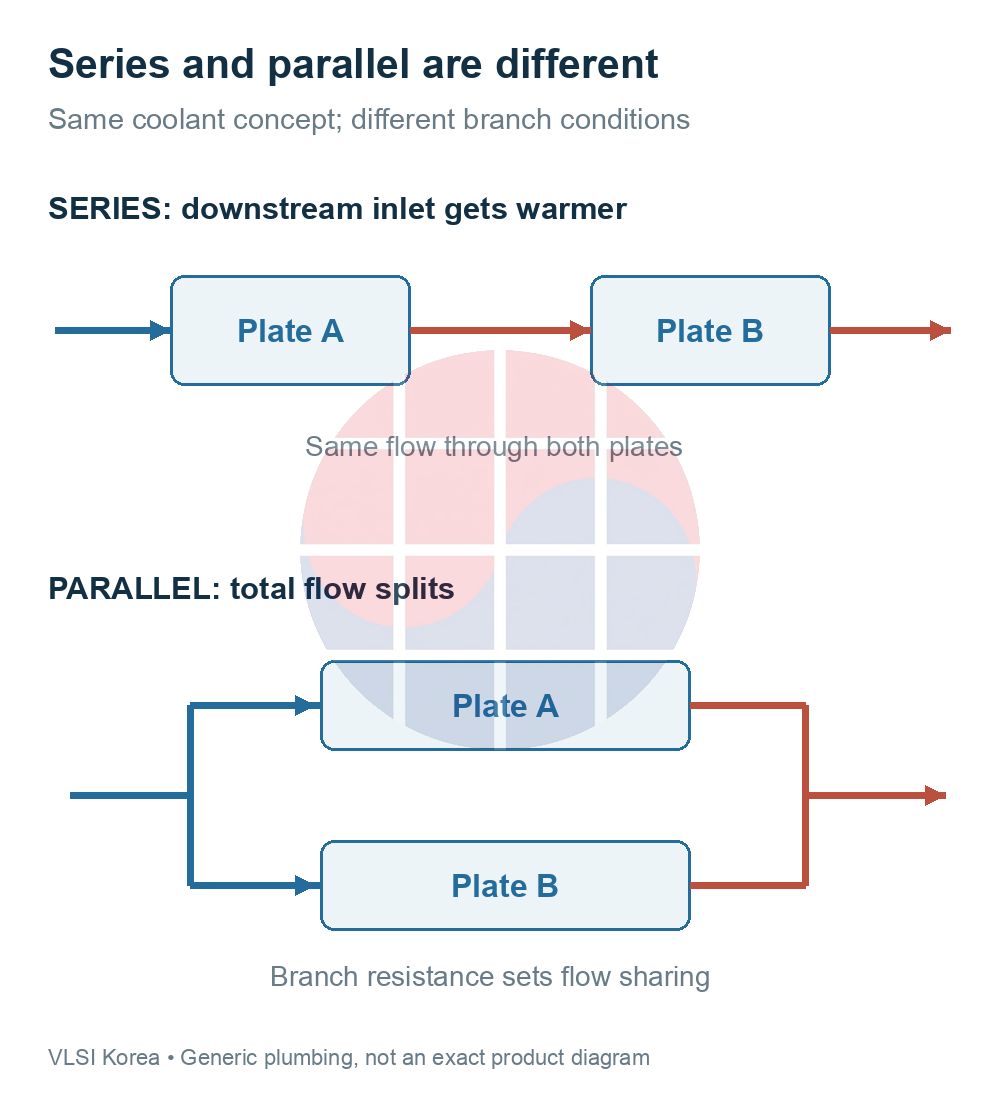

When cold plates are connected in series, water heated by an upstream chip enters the next plate. The downstream chip receives warmer water even if the heat loads are equal. The single-source calculation cannot be applied to every chip using the same inlet temperature.

Parallel branches can deliver similar inlet temperatures to multiple cold plates. But total flow divides among them, so rack flow must not be confused with cold-plate flow. Unequal branch resistance produces unequal flow, and the chip generating the most heat does not automatically receive the most coolant.

A coolant distribution unit, or CDU, connects and controls the computer-side and facility-side cooling systems. That is why the Frontier study considers changing pressures and flows alongside temperatures. An inlet temperature at one location and a pump nameplate cannot explain every chip's cooling margin.

Lowering inlet-water temperature shifts the calculated chip temperature down by the same amount. However, it also changes the operating conditions and cost of producing cold water. Allowing warmer supply water may ease outdoor heat rejection, but consumes more of the temperature margin available at the chip. Package and facility optimization become part of the same problem.

Begin a purchase specification with a temperature budget

First establish the allowable temperature of the hottest chip at the target load and the inlet-water temperature the facility can actually supply. Allocate the difference among package, contacts, cold plate and coolant warming to identify the required improvement. Supplier comparisons need resistance and pressure-drop curves measured with comparable heat-source areas and assembly conditions.

During validation, vary flow while holding load and inlet temperature constant, and record chip temperature, coolant inlet and outlet temperatures, pressure difference and pump electrical input together. This helps identify which part of the path changed. A better average chip temperature can still conceal local hot spots or a starved branch; the simple model does not replace detailed thermal analysis and hardware testing.

The industrial offering extends beyond a pump's L/min rating. It includes cold plates matched to heat-source placement, contacts that remain consistent through assembly, plumbing that distributes flow properly and the ability to test the combined system. This is an engineering inference from the heat path and calculations, not a forecast of any supplier's yield or revenue.

Before doubling flow, separate the contributions to the current chip temperature. Determine whether water warms too much, heat struggles to cross from wall to water, or the bottleneck lies in the solid path before heat reaches the water. That distinction directs the cooling budget toward the constraint limiting sustained chip performance.

Sources and editorial notes

Primary sources: SK hynix infrastructure article, 2026-09-30, Brewer et al., Frontier cooling-model study, 2024-10-07, DOE thermodynamics, DOE heat transfer, DOE fluid flow, Eaton cold-plate construction.

Sources were checked on 2026-10-03. VLSI Korea created the calculations and diagrams using the stated assumptions; they are not measured performance. The cover is an actual photograph of Frontier taken on 2022-07-05. AI tools assisted public-source research and drafting. VLSI Korea retains editorial responsibility and operates independently of employers and suppliers. Editorial and AI-assistance standards.
