Why High-NA EUV Needs a 12-Inch Photomask: After Resolution, the Bottleneck Is Field Size

A deep Engineering explainer on why High-NA EUV turns mask field, reticle stitching and the 12-inch photomask ecosystem into the next production bottleneck.

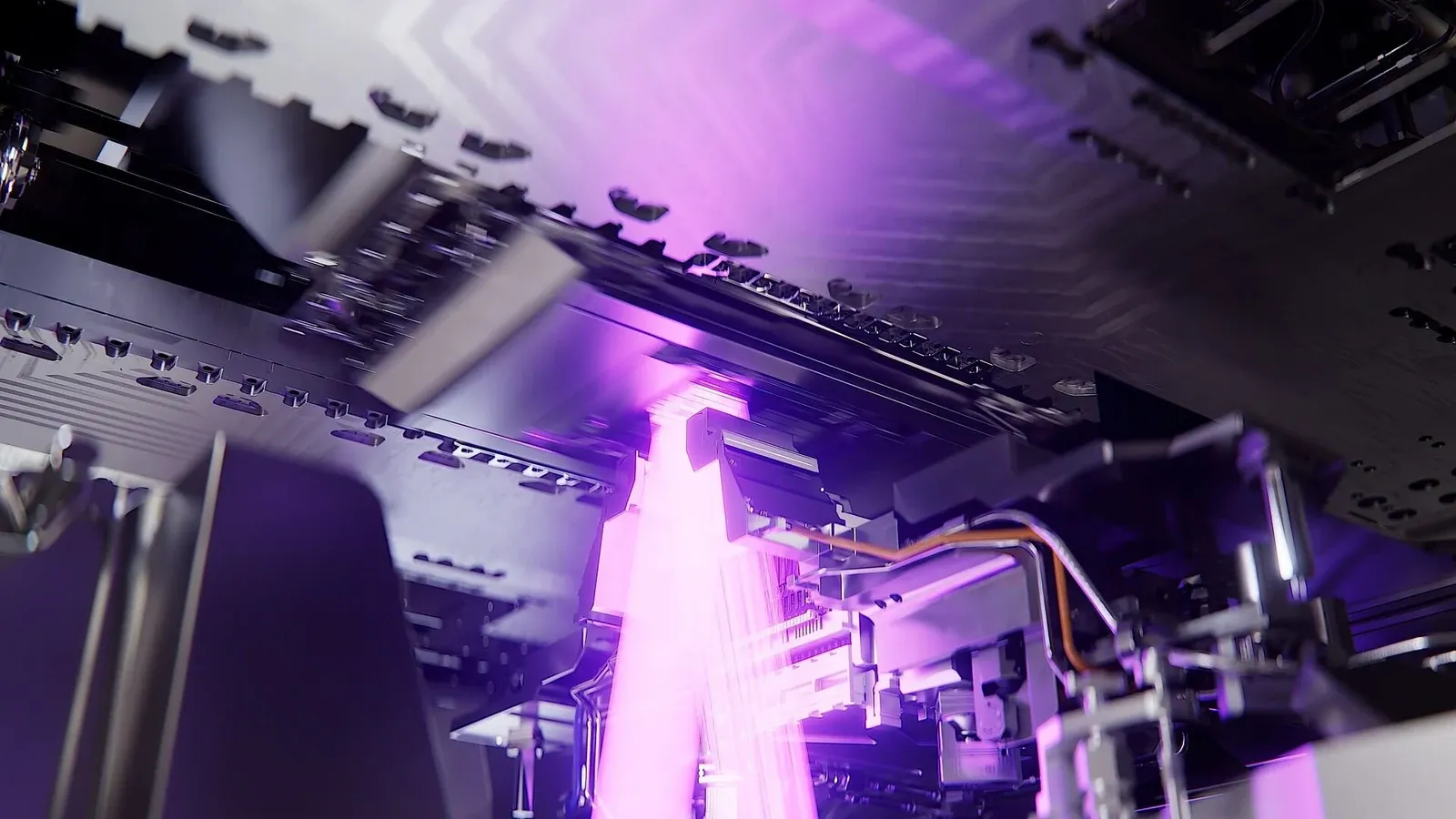

ASML High-NA EUV system image used as the physical anchor for the 12-inch photomask discussion.
ASML High-NA EUV system image from the ASML/TSMC 12-inch photomask initiative press release. Source: ASML.

Engineering · September 19, 2026 · 13 min read

High-NA EUV raises numerical aperture from 0.33 to 0.55 so fabs can print smaller patterns with stronger image contrast. But ASML, TSMC, Samsung and Intel talked about 12-inch photomasks and stitching in the same September 2026 week because the next bottleneck is no longer only resolution. It is exposure field, mask infrastructure and scanner productivity.

ASML High-NA EUV system image used as the physical anchor for the 12-inch photomask discussion.
Figure 1. ASML High-NA EUV system image from the ASML/TSMC 12-inch photomask initiative press release. Source: ASML.

The promise of High-NA EUV is easy to state. Keep the 13.5 nm EUV wavelength, increase the projection optics numerical aperture to 0.55, and print smaller structures with better contrast. ASML's EXE:5000 product page cites 8 nm resolution, features 1.7x smaller than NXE, potential transistor density 2.9x higher than NXE, and 40% higher imaging contrast.[1]

The September 2026 announcements were about the part after resolution. ASML and TSMC launched a 12-inch photomask transition initiative. Samsung joined that transition and said it plans to introduce High-NA EUV into DRAM high-volume manufacturing in 2028. Intel and ASML emphasized stitching and PDK solutions that let customers use High-NA with today's 6-inch mask format.[2][3][4]

VLSI Korea view: The first bottleneck for High-NA EUV is not whether the scanner can resolve smaller features. It is how much of that resolution can be converted into wafer field and fab productivity.

High NA does not change the color of light. It changes the accepted angle

In EUV lithography, the wavelength remains 13.5 nm. One way to resolve a smaller pattern is to let the projection optics collect a wider cone of light. Numerical aperture, or NA, describes that optical opening. A higher NA can transmit higher spatial frequency information to the wafer image.

But EUV optics are not glass lenses in air. EUV light is absorbed by air, so the optical path runs in vacuum. The mask is not a transparent plate but a reflective multilayer reticle. ASML describes EUV reticles as multilayer reflectors that send the pattern toward the wafer, where the scanner prints a reduced image.[1]

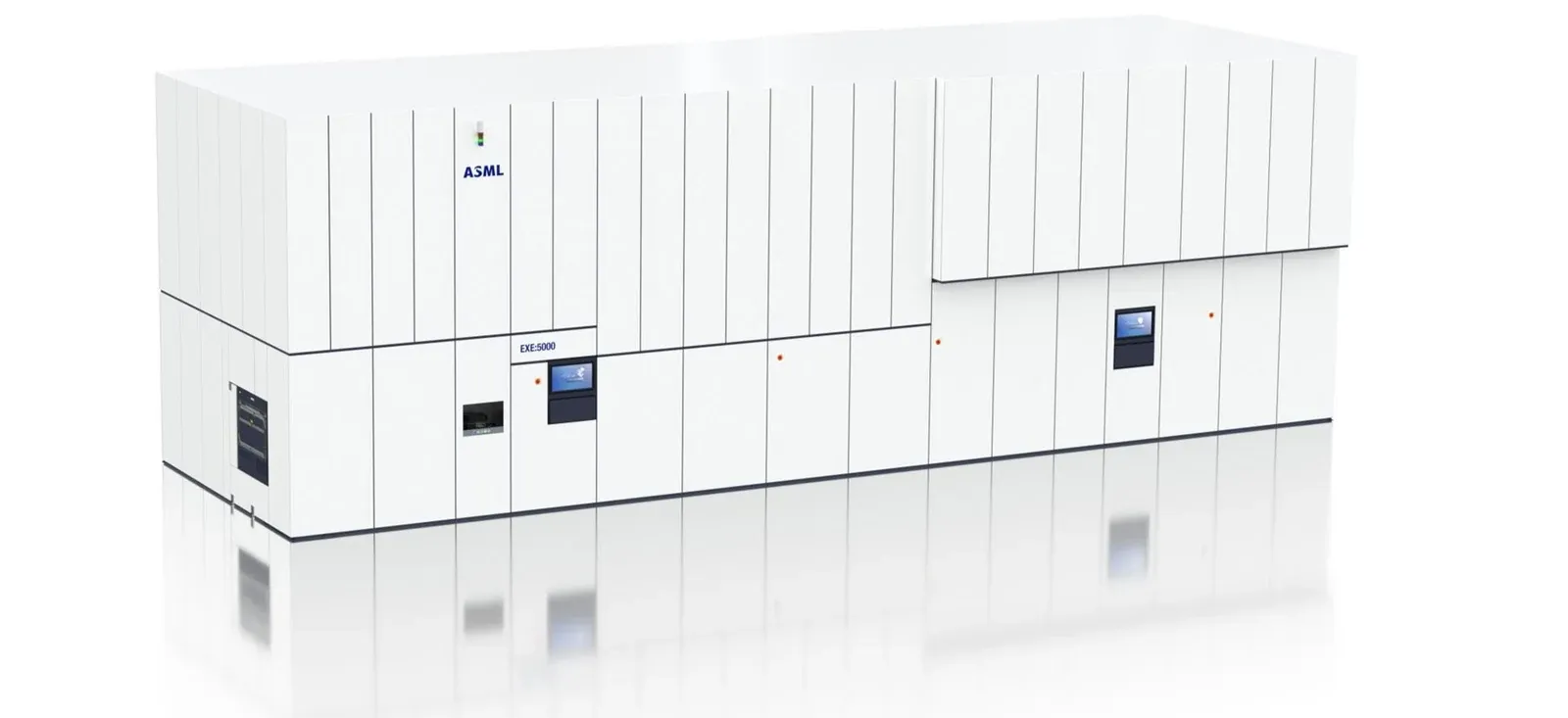

ASML TWINSCAN EXE:5000 High-NA EUV lithography system.
Figure 2. ASML TWINSCAN EXE:5000, the first 0.55 NA EUV lithography system. Official ASML product image.

At 0.55 NA, keeping the same 6-inch mask and the same full-field geometry becomes difficult. High-NA EUV therefore uses anamorphic optics: 4x reduction in one direction and 8x in the other. This preserves much of the 6-inch mask ecosystem, but it cuts the wafer exposure field in one direction. Imec's High-NA explanation makes the same point: the 6-inch mask is preserved, the design is stretched in one direction, and the image field is cut in half.[5]

That is where the bottleneck appears. A familiar full field for 0.33 NA EUV is roughly 26 mm x 33 mm. With today's 6-inch mask and High-NA anamorphic optics, the practical field becomes about 26 mm x 16.5 mm. A small die can fit. A large logic die, accelerator tile or reticle-limit design may not.

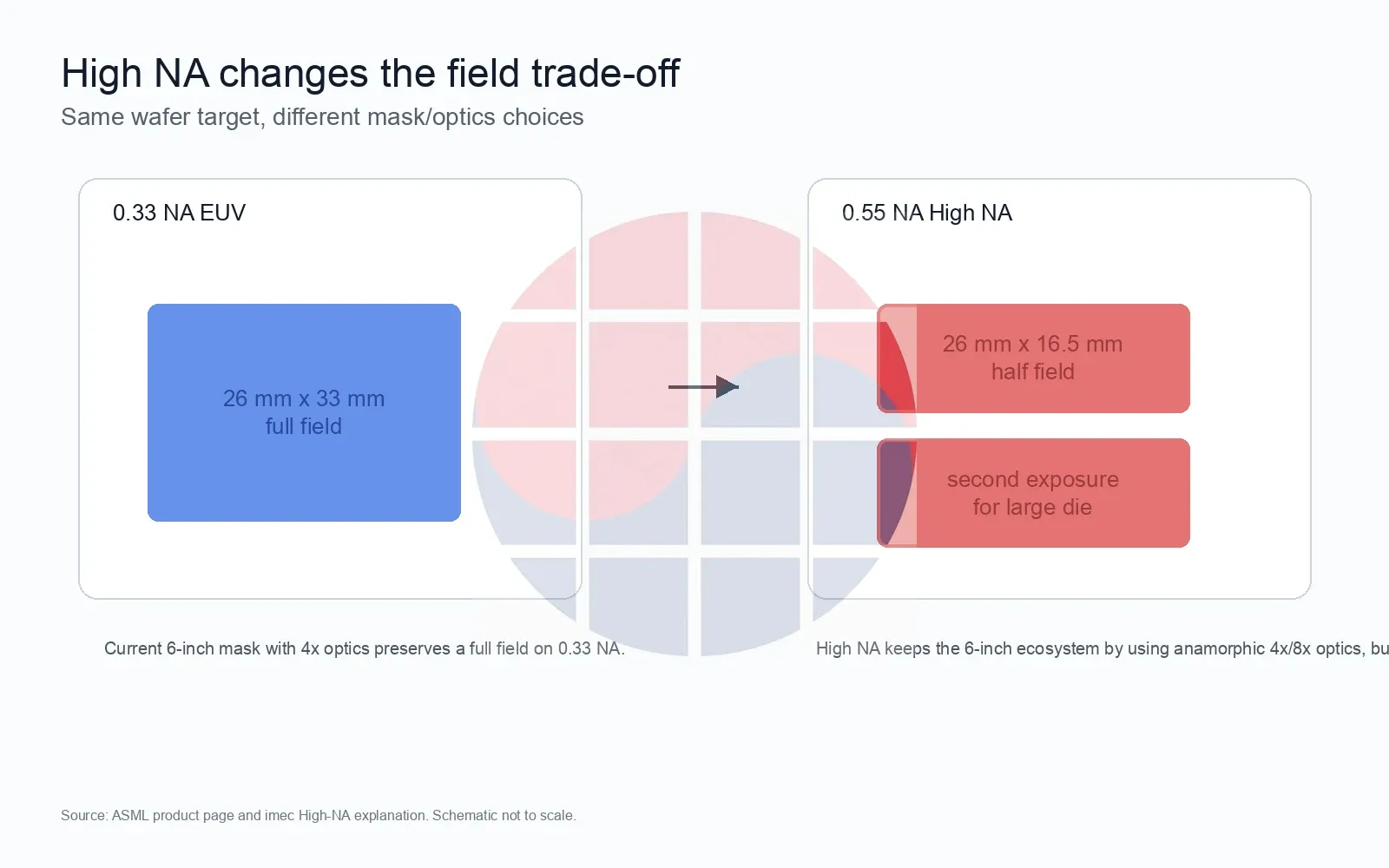

Original schematic comparing full-field 0.33 NA EUV with half-field High-NA EUV exposure geometry.
Figure 3. High NA’s first compromise: anamorphic optics keep 6-inch masks usable, but the wafer exposure field is halved. VLSI Korea original schematic.

The practical question is not only smaller lines. It is how to print a large chip

Lithography is often described as a linewidth race. In a production fab, there is a second question that matters just as much: how much wafer area can one exposure pattern?

A smaller field creates two costs. First, a large die may need to be floor-planned around the half-field limit. Chip boundaries, macros, repeated blocks, scribe lines and overlay budgets start to see field geometry. Second, a large pattern may need reticle stitching, where two or more exposures are aligned into one die.

The idea of stitching is simple. Print the left side of a die in one exposure, print the right side in another, and align the seam on the wafer. The fab reality is harder. Overlay near the seam, critical-dimension variation, resist and process bias, OPC, metrology and yield monitoring all become more sensitive. The design cost also depends on whether the seam crosses logic, SRAM, clock distribution, power grid or repeated structures.

That is why Intel and ASML said in September 2026 that customers can use High-NA with today's 6-inch mask format by floor-planning within the mask or by using Intel Foundry's stitching capabilities and PDK solutions. Intel said it had processed more than one million wafers across early tool certification, R&D and volume production on selected Panther Lake layers. It also said the near-term path is 6-inch-mask enablement, with a transition toward 6 x 12-inch masks.[4]

The same High-NA scanner can be straightforward for small-die layers and much harder for large-die layers. The bottleneck becomes visible where large die size, mask count, stitching overlay and scanner productivity meet.

A 12-inch mask is the industry route to recover field size

The ASML and TSMC 12-inch photomask initiative attacks that trade-off directly. The companies said they formed the initiative on September 7, 2026, just before the SPIE BACUS Conference. The target is a 12-inch mask pilot line by 2031 and full lithography system readiness for advanced-node production by 2033.[2]

The lever is photomask area. With today's 6-inch mask, High-NA anamorphic optics halve the wafer field in one direction. A larger mask format can give the scanner more pattern area to project while preserving the resolution benefit. The ASML/TSMC and Samsung releases say the transition is expected to improve fab productivity, reduce chipmaking cost and remove stitching constraints.[2][3]

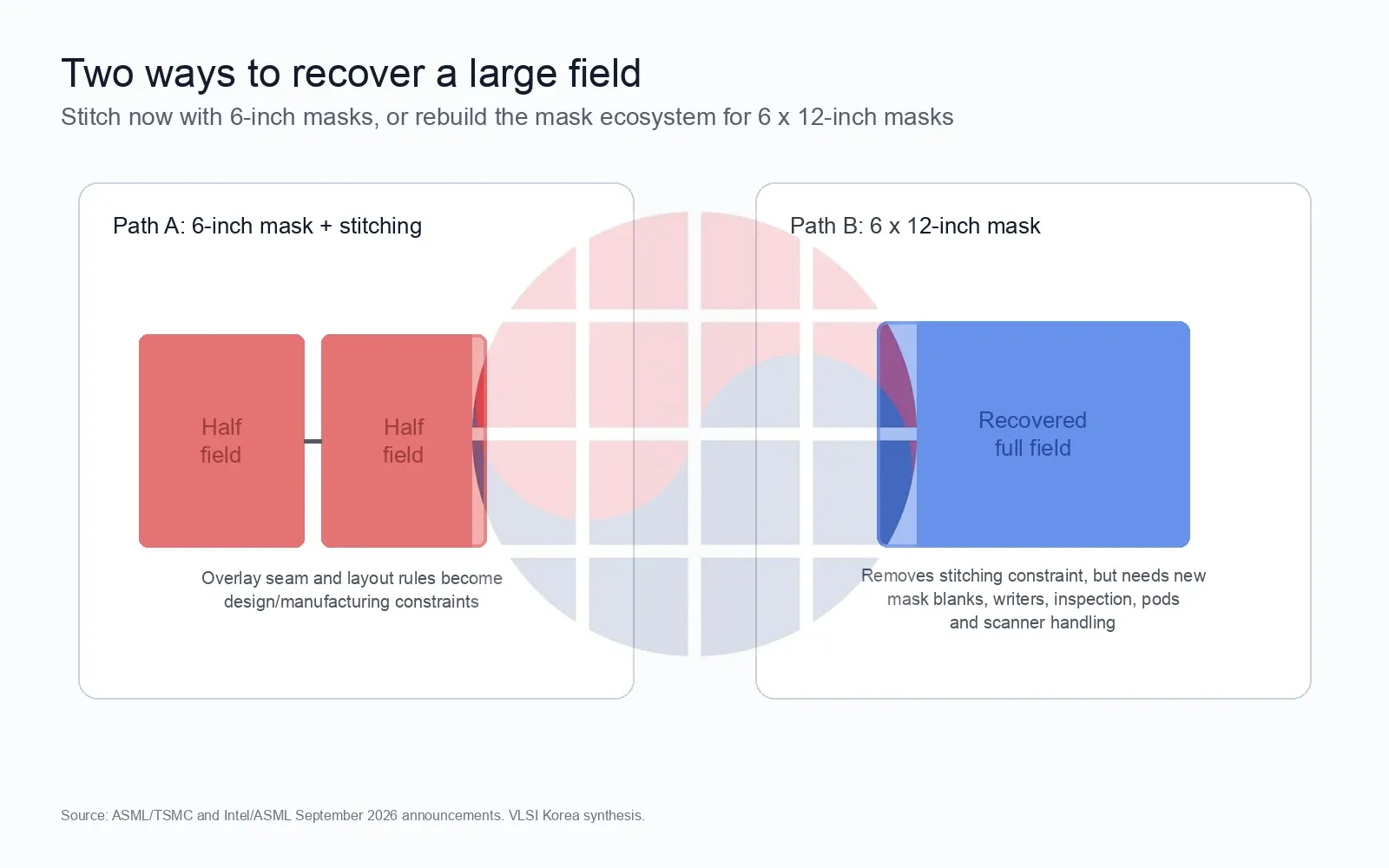

Original schematic contrasting 6-inch mask reticle stitching with a larger 6 by 12-inch mask path for High-NA EUV.
Figure 4. Stitching is the near-term compatibility path; 6 x 12-inch masks are the ecosystem rebuild path. VLSI Korea original schematic.

The wording can confuse readers. This is not about 12-inch wafers. The industry already uses 300 mm wafers for leading-edge production. The proposed change is about the photomask, or reticle, that carries the chip pattern. If that object grows, mask writers, inspection tools, repair, cleaning, storage pods, scanner reticle handling and factory automation all have to change.

A simple area comparison shows the pressure. A 26 mm x 16.5 mm half field is about 429 mm². A 26 mm x 33 mm full field is about 858 mm². If a large die needs two half-field exposures instead of one full-field exposure, the fab pays not only for the exposure but also for stage motion, alignment, overlay verification and seam risk. Dose, layer type, layout and scanner scheduling decide actual wafer throughput, so this area calculation is not a wafer-per-hour estimate. It is a way to see why field recovery is an economics problem.

A bigger mask is not just a bigger plate

If the larger mask path is attractive, why not switch immediately? Because an EUV photomask is not a passive plate. It is a precision reflective object with a multilayer mirror, absorber, capping layer, substrate flatness, backside coating, pellicle infrastructure, defect inspection, repair, cleaning, storage and transport requirements.

Imec's High-NA ecosystem work reported that mask multilayer ripple and absorber line-edge roughness can increasingly affect the final wafer pattern. Imec also discussed low-n absorber and phase-shift-mask options that can help reduce mask 3D effects and improve depth of focus.[6]

Mask 3D effects matter because EUV masks reflect light. They are not transparent optical masks. EUV light arrives at an angle, interacts with the absorber and multilayer stack, and reflects toward the wafer. Absorber height, sidewall geometry, material refractive index and multilayer reflection all influence the aerial image. Higher NA makes those sensitivities more demanding.

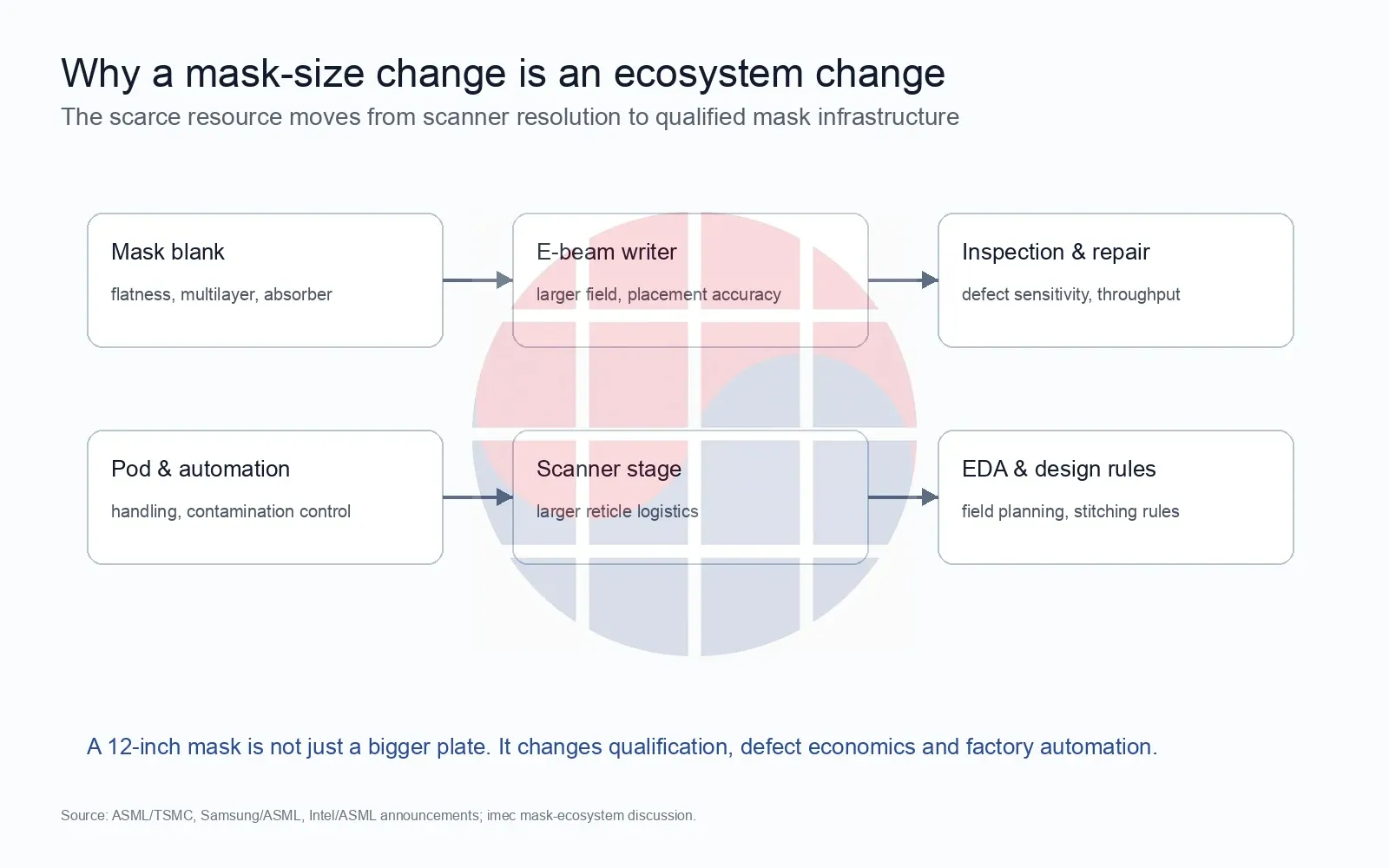

Original schematic showing mask blank, writer, inspection, pod, scanner and EDA dependencies for a larger High-NA photomask.
Figure 5. A larger photomask changes the qualified ecosystem, not just the optical plate. VLSI Korea original schematic.

A larger blank also changes defect economics. At the same defect density, a larger area makes a defect-free qualified mask harder to obtain. E-beam writers have to cover a larger pattern area while preserving placement accuracy. Inspection and repair tools have to find smaller defects across more area. Automation has to move a larger mask and pod without contamination.

So a 12-inch mask is not a scanner accessory. It is an ecosystem migration across mask houses, material suppliers, writers, inspection tools, EDA, scanner stages and fab automation. That is why the ASML/TSMC announcement described an industry initiative. No single company can qualify the entire chain alone.[2]

The 6-inch path and 12-inch path sit on different time axes

High-NA adoption is not one switch. ASML says the EXE platform supports high-volume chip manufacturing in 2025-2026. Samsung said it plans High-NA EUV for future DRAM high-volume manufacturing in 2028. TSMC said it intends to use ASML High-NA technology in advanced-node high-volume manufacturing starting in 2030. The 12-inch mask pilot line target is 2031, and full lithography-system readiness for 12-inch High-NA production is targeted for 2033.[1][2][3]

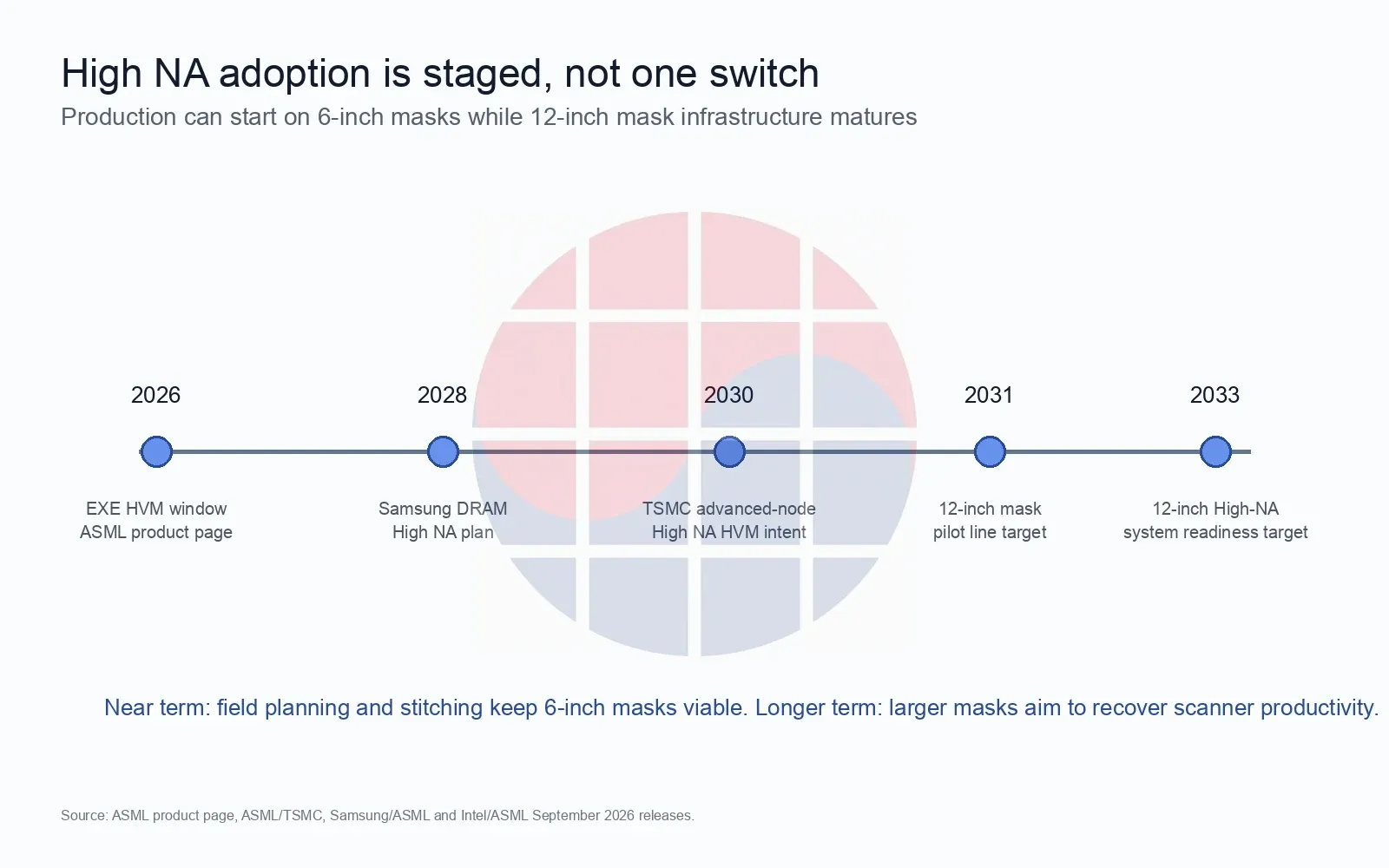

Original timeline of High-NA EUV use on 6-inch masks and future 12-inch mask pilot and production-readiness targets.
Figure 6. The industry can start High NA on 6-inch masks before the 12-inch mask ecosystem is ready. VLSI Korea original timeline.

That sequence matters. Early High-NA production in the late 2020s starts mostly on the current 6-inch mask ecosystem. Layers that fit the smaller field, small-die products, memory patterning, or designs that can tolerate stitching see the benefit first. In this phase the bottleneck is not only buying scanners. It is process window, resist, mask defectivity, OPC, overlay, PDK enablement and the integration decision about which layers deserve High NA.

The larger mask is a later productivity lever. As High-NA layer count rises and large die run into field constraints more often, the cost of absorbing stitching in design and manufacturing rises. A bigger mask becomes a way to translate the scanner's resolution advantage into fab economics.

Why the DRAM reference matters

Samsung's DRAM wording is important. Logic large-die constraints and memory patterning constraints are not the same problem. DRAM has highly repeated structures and intense cell-pitch scaling pressure. High NA can reduce multi-patterning steps or improve process margin on selected critical layers. ASML also says EXE starts with 2 nm logic and is followed by memory nodes at similar density.[1][3]

But memory lives and dies by cost per bit and yield ramp. A High-NA scanner is expensive, and the process window is difficult. A layer-level benefit has to beat scanner cost, resist and material cost, mask cost, cycle time and yield risk. In DRAM, High NA only matters if smaller patterning becomes lower total bit cost at acceptable yield.

The 12-inch mask is a long-term variable here as well. DRAM die are not always blocked by the same reticle-limit problem as large AI accelerators. But as High-NA layer count rises and scanner utilization matters more, half-field geometry enters more cost models. The larger mask is not only a large-logic-die story. It is a question of how fabs use expensive High-NA scanner hours across product families.

The bottleneck moves from resolution to qualification

The shortest description of High-NA EUV is that it prints smaller features with fewer patterning steps. The September 2026 announcements show the next bottleneck outside the resolution spec. Fabs first have to decide which products and layers make economic sense on 6-inch masks and half fields. Designs that need stitching must absorb seam risk through layout, OPC, overlay and metrology. To use 12-inch masks, the entire mask ecosystem must qualify a new format.

The scarce resource is therefore not singular. It includes ASML High-NA scanners, qualified mask blanks and absorbers, mask writer and inspection capacity, process integration learning, PDK and EDA flow maturity, and the fab experience needed to turn all of that into yield.

That is the real meaning of the 12-inch photomask push. It is not just a bigger mask announcement. It is a signal that the industry expects High NA to become a long-term production platform, not merely an R&D tool or a niche option for a few layers. The 6-inch mask and stitching path is the bridge that lets fabs use High NA now. The 12-inch mask is the attempt to remove the field bottleneck that appears once the bridge starts carrying real production traffic.
